Inlet-Pressure Psi (Mpa): | 1.42~4.20 (0.01~0.10) | ||
3.55~21.30 (0.025~0.15) | |||
Outlet-Pressure inch W.C (kPA): | 11.0±2.0 (2.8±0.5) | ||
23.6±3.8 (6.0±1.0)
39.4±7.9 (10.0±2.0) 59.1±11.8 (15.0±3.0) 98.4±19.7 (25.0±5.0) |
|||
Internal Relief Valve inch W.C (kPA): | 27.6±5.5 (7.0±1.4) | ||
Connection | Inlet: | PT1/2B | |
PT3/4B | |||
PT3/4B | |||
Outlet: | PT1/2B | ||
PT3/4B | |||
PT3/4B | |||
Interval mm (inch): | 143 (5.6) |

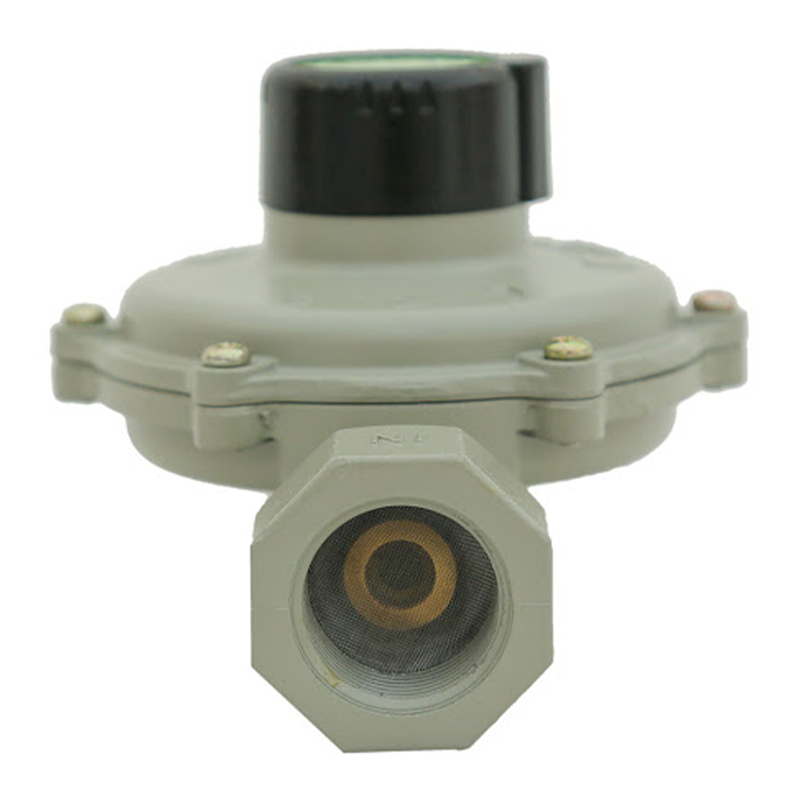

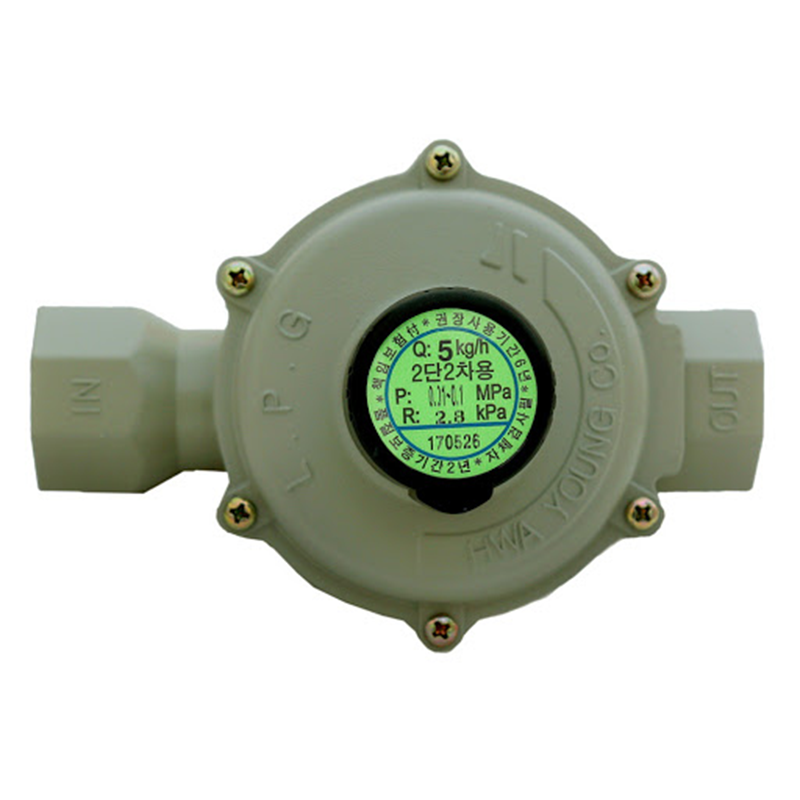

HYR-205 Hwa Young L/P Regulator 5Kg/hr
රු5,750.00
Flow-Capacity Btu/h (kg/h): 239,000 (5)
Application : For Business
In stock
SKU: 06/0021
Category: Hwa Young Regulators
Weight | 2 kg |
---|
