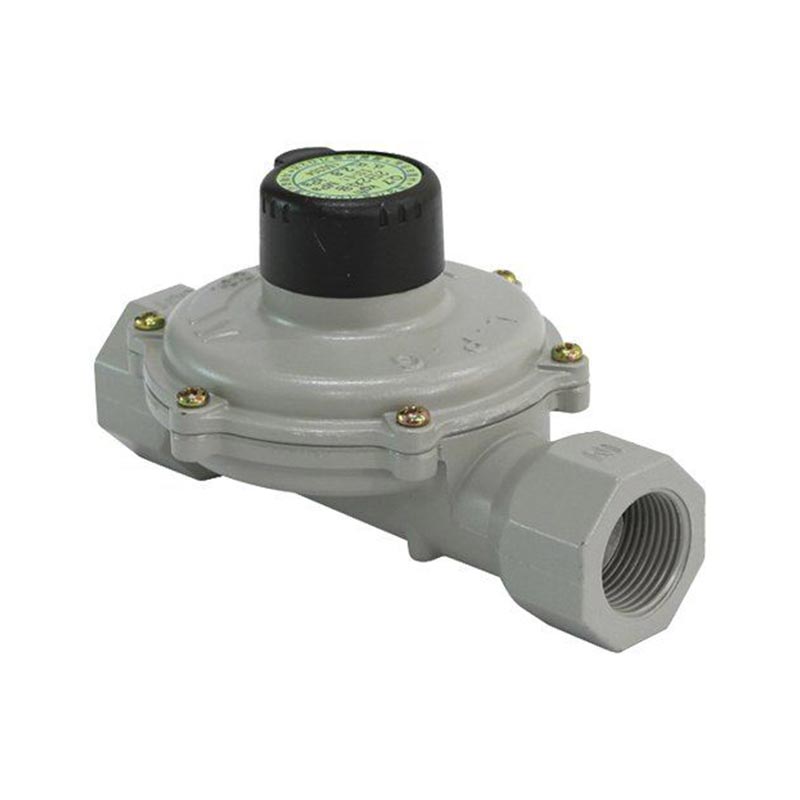

HYR-207 Hwa Young L/P Regulator 7Kg/hr


This regulator is for the second stage first reduction system that reduces pressure range 0.001~0.4MPa to low pressure or middle-low pressure. This reduced pressure range enables the use of a second reduction regulator in order to reduce the pressure for proper use of commercial or industrial applications.

In stock

SKU: 06/0017H Category:
Low Pressure Type Middle Low Pressure Type
Inlet Pressure Range : 0.01~0.15 MPa 0.025~0.15 MPa
Setting Outlet Pressure (P2) : 2.8 kPa 6, 15, 25 kPa
Outlet pressure Range : 2.8±0.5 kPa P2±Within 20%
Capacity : 7kg/h 7kg/h
Internal Relief Working Pressure : 7.0±1.4 kPa No Relief
Inlet Connection Size : PT 3/4B PT 3/4B
Outlet Connection Size : PT 3/4B PT 3/4B
Application : Household & Commercial Household & Commercial
Weight 1 kg
